thermOweld® Single Shot Molds are an economical way to make cable connections to the top of a ground rod. The Single Shot is a disposable single use ceramic mold that includes the weld metal and disc. Flint ignitor or EZ Lite Adapter must be purchased separately.
| Grid Rod Size |

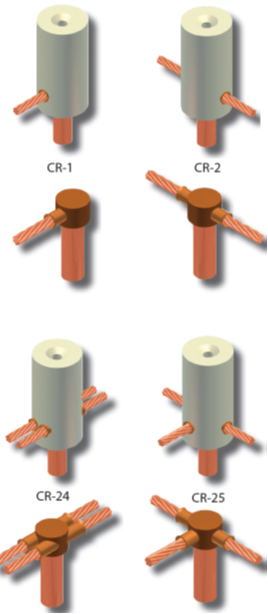

Cable Size | Type | Mold # | |
|---|---|---|---|---|
| Solid | Stranded | |||
| 1/2″ | #6, #8 | #8 | CR-1 | M-2009 |
| #3, #4 | #4, #6 | M-2010 | ||
| #1, #2 | #2, #3 | M-2011 | ||
| #6, #8 | #8 | CR-2 | M-2024 | |
| #3, #4 | #4, #6 | M-2025 | ||
| #1, #2 | #2, #3 | M-2026 | ||
| 5/8″ | #6, #8 | #8 | CR-1 | M-2012 |
| #3, #4 | #4, #6 | M-2013 | ||
| #1, #2 | #2, #3 | M-2014 | ||
| 2/0, 1/0 | 1/0, #1 | M-2015 | ||
| 2/0 | CR-2 | M-2016 | ||
| #6, #8 | #8 | M-2027 | ||
| #3, #4 | #4, #6 | M-2028 | ||
| #1, #2 | #2, #3 | M-2029 | ||
| 2/0, 1/0 | 1/0, #1 | M-2030 | ||
| #6, #8 | #8 | CR-24 | M-2105 | |
| #3, #4 | #4, #6 | M-2106 | ||
| #1, #2 | #2, #3 | M-2107 | ||
| #6, #8 | #8 | CR-25 | M-2006 | |
| #3, #4 | #4, #6 | M-2007 | ||
| #1, #2 | #2, #3 | M-2008 | ||
| 3/4″ | #6, #8 | #8 | CR-1 | M-2017 |
| #3, #4 | #4, #6 | M-2018 | ||
| #1, #2 | #2, #3 | M-2019 | ||
| 2/0, 1/0 | 1/0, #1 | M-2020 | ||
| 2/0 | M-2021 | |||
| #6, #8 | #8 | CR-2 | M-2031 | |
| #3, #4 | #4, #6 | M-2032 | ||
| #1, #2 | #2, #3 | M-2033 | ||
| 2/0, 1/0 | 1/0, #1 | M-2034 | ||
| #6, #8 | #8 | CR-24 | M-2108 | |
| #3, #4 | #4, #6 | M-2109 | ||
| #1, #2 | #2, #3 | M-2110 | ||
| #6, #8 | #8 | CR-25 | M-2068 | |
| #3, #4 | #4, #6 | M-2069 | ||
| #1, #2 | #2, #3 | M-2070 | ||
