Horizontal Cable to Horizontal Steel Surface
For AWG Conductors

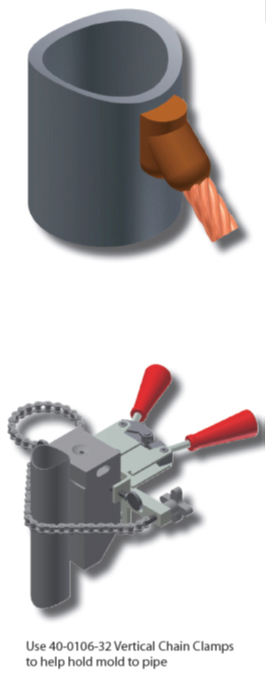

cable molds cs-3 with clamp

Molds for AWG Conductors

Cable Size	Pipe Size	Mold #	Price Key	Weld Metal	Handle Clamps
#4	1 1/4″ to 4″	M-2476	4	45	B-106
	4″ to 6″	M-2477
	6″ to 10″	M-2478
	12″ & up	M-586*
#2 Sol	1 1/4″ to 4″	M-9233-S	4	45	B-106
	4″ to 6″	M-2480-S
	6″ to 10″	M-2583-S
	12″ & up	M-588-S*
#2	1 1/4″ to 4″	M-9233	4	45	B-106
	4″ to 6″	M-2480
	6″ to 10″	M-2583
	12″ & up	M-588*
#1	1 1/4″ to 4″	M-2482	4	65	B-106
	4″ to 6″	M-2483
	6″ to 10″	M-2484
	12″ & up	M-589*
1/0	1 1/4″ to 4″	M-2486	4	90	B-106
	4″ to 6″	M-2487
	6″ to 10″	M-2488
	12″ & up	M-590*
2/0	1 1/4″ to 4″	M-2483	4	90	B-106
	4″ to 6″	M-2490
	6″ to 10″	M-2491
	12″ & up	M-591*
3/0	1 1/4″ to 4″	M-2493	4	115	B-106
	4″ to 6″	M-2494
	6″ to 10″	M-2495
	12″ & up	M- 592*
4/0	1 1/4″ to 4″	M-9021	4	115	B-106
	4″ to 6″	M-2497
	6″ to 10″	M-2498
	12″ & up	M-593*

For sizes not listed, contact Preferred Lightning Protection.
Molds listed are for concentric stranded cable. Add suffix “-S” to mold number for solid conductors.
To order weld metal for use with EZ Lite Remote® insert TW before and EZ after weld metal number.
Required Tools:

Handle Clamps w/Flint Ignitor (see chart for correct handles)
38-0309-00 — Flint Ignitor or 38-EZLT-RU — EZ Lite Remote®
Other recommended accessories:

40-0106-32 — Vertical Chain Clamp w/B-106 Handles for 4″ Pipe & Smaller
40-0106-27 — 20″ Chain Extension for 4″ to 10″ Pipe
Use (2) 20″ Chain Extensions for pipe sizes between 10″
and 16″
40-4431-00 — Magnetic handle Clamp w/B-106 Handles
38-3922-00 — Mold Cleaning Brush
38-0135-00 — Cable Cleaning Brush
38-0101-00 — Rasp

*Flat Surface Mold
