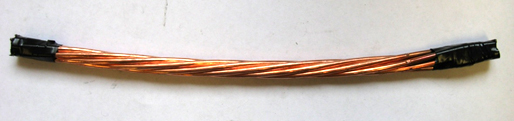

Copper Weld Conductors

30% CONDUCTIVITY HIGH STRENGTH CONCENTRIC CABLE

Part #	AWG	NO. OF STRANDS	STRAND DIAMETER	WT PER 1000 FT	BREAKING LOAD LBS	CIRCULAR MILLS
CW7X83H	1/0	7	0.1285	324	11,101	115,586
CW7X73H	2/0	7	0.1443	409	13,495	145,757
CW7X53H	4/0	7	0.1819	649	19,858	231,613

30% CONDUCTIVITY DEAD SOFT ANNEALED CONCENTRIC CABLE

Part #	AWG	NO. OF STRANDS	STRAND DIAMETER	WT PER 1000 FT	BREAKING LOAD LBS	CIRCULAR MILLS
CW7X53D	4/0	7	0.1819	649	7148	231,613

Other sizes and configurations of Copperweld Conductors are available. Please contact our sales department for your specific need.
