Galvanized tripod braces made of mild steel.

Available with two mounting holes or adhesive feet.

For all air terminals over 24″ in length. Specify brace size 1/2″ or 5/8″ when ordering. Use 1/2″ brace for 3/8″ air terminal. UL Listed.

Other sizes available upon request.

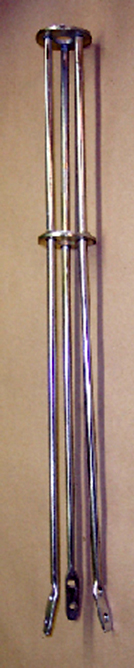

Mounting Holes	Use with Air Terminal
G150 — 18″ Tripod brace	30″
G151 — 24″ Tripod brace	36″
G152 — 36″ Tripod brace	48″
G153 — 48″ Tripod brace	60″
G154 — 60″ Tripod brace	72″
G155 — 72″ Tripod brace	84″
G156 — 84″ Tripod brace	96″

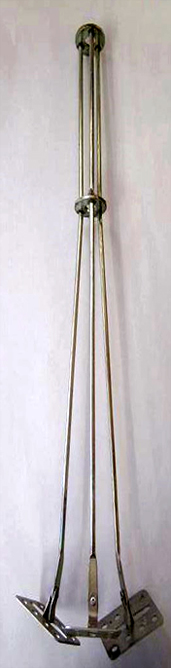

Adhesive Tripods	Use with Air Terminal
G160 — 18″ Tripod brace	30″
G161 — 24″ Tripod brace	36″
G162 — 36″ Tripod brace	48″
G163 — 48″ Tripod brace	60″
G164 — 60″ Tripod brace	72″
G165 — 72″ Tripod brace	84″
G166 — 84″ Tripod brace	96″
