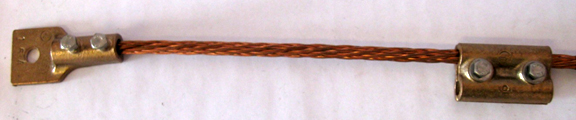

Special bonding assembly for bonding a metal body to the cable circuit or downlead. Assembly consists of copper cable, 921 brass splicer, and 927 bonding lug. Please refer to chart below for ordering and specify all sizes.
| —— | 956 | X | —— | —— | X | —— |
| Material code C S LC |
Assembly code |
Standard | Length of cable in inches |
Add 40 for C902 cables 4/0 AWG leave blank for 901 cables |
Standard | Specify bolt size in 927 bonding lug 38—3/8 12—1/2 58—5/8 34—3/4 78—7/8 |
C = both bare brass for connector and lug
S = lead covered for connector and stainless for lug
LC = lead covered brass for both connector and lug
Example:
C956X3640X34
Bare brass with 36″ of bare copper 4/0 AWG conductor (C902) and a 3/4″ bolt size in the lug.
