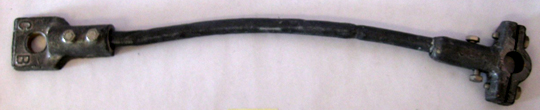

Special bonding assembly for bonding a metal body to an air terminal. Assembly consists of catalog numbers, copper cable, C926 air terminal connector, and C927 bonding lug. Please refer to chart below for ordering and specify all sizes. Only available lead coated or stainless steel bonding lug.
| —— | 952 | —— | X | —— | —— | X | —— |
| Material code S LC |
Assembly code |
Size of air terminal diameter for part 926 58—5/8 34—3/4 78—7/8 |
Standard | Length of cable in inches |
Add 40 for C902 cables 4/0 AWG leave blank for 901 cables |
Standard | Specify bolt size in 927 bonding lug 38—3/8 12—1/2 58—5/8 34—3/4 78—7/8 |
S = lead covered for connector and stainless for lug
LC = lead covered brass for both connector and lug
Example:
LC95258X2440X34
Lead covered brass LC926 connector machined for 5/8″ OD with 24″ of lead covered 4/0 conductor (902LC) and lead covered bonding lug machined for 3/4″ bolt.
