518-519 Thru-Rod Assembly with 1″ PVC

Categories:

518-519-thru-rod-assembly-1518-519-thru-rod-assembly-2

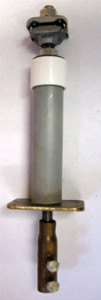

1/2″ Threaded Rod housed in 1″ Schedule 40 PVC. Furnished with a 500 Series cable connector at the top end. They both have an optional 8 square inch flat surface base or an 8 square inch flat base with a straight base extension cable connection. Standard sizes are 18” and 24″. For use with main size or secondary conductors.

18″ THRU ROD ASSEMBLIES

A518
18″ Aluminum thru rod assembly with mounting plate and straight base
A518NC
515-517 Thru Rod Assembly 18″ Aluminum thru rod assembly with only mounting plate
C518
18″ Brass thru rod assembly with mounting plate and straight base
C518NC
18″ Brass thru rod assembly with only mounting plate
C518A
18″ thru rod with Aluminum top and Brass bottom
C518ANC
18″ thru rod with Aluminum top and Brass bottom only mounting plate

24″ THRU ROD ASSEMBLIES

A519
24″ Aluminum thru rod assembly with mounting plate and straight base
A519NC
24″ Aluminum thru rod assembly with only mounting plate
C519
24″ Brass thru rod assembly with mounting plate and straight base
C519NC
24″ Brass thru rod assembly with only mounting plate
C519A
24″ thru rod with Aluminum top and Brass bottom
C519ANC
24″ thru rod with Aluminum top and Brass bottom only mounting plate
